首頁 > 產品中心 > DO-214AA封裝：PXXX0SA/B/C系列

詳細介紹

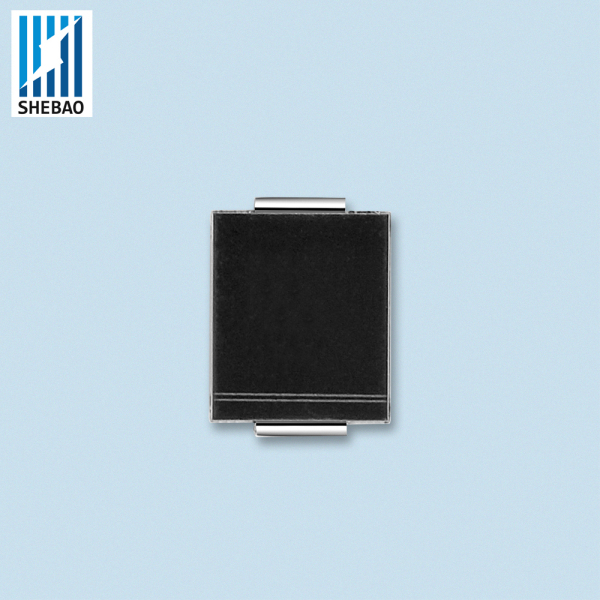

SMT貼片：DO-214AA封裝：PXXX0SA/B/C系列
封裝：DO-214AA
型號：P0080S；P0300S；P0640S；P0720S；P0900S；P1100S；P1300S；
P1500S；P1800S；P2300S；P2600S；P3100S；P3500S(A/B/C)
抗雷擊等級@10/700μs：PXXXOSA：2KV PXXXOSB：4KV PXXXOSC：6KV
...........................................DO-214 SIDACtor Data.......................................

The DO-214 SIDACtor is a solid state protection device designed for telecommunications applications such asmodems,
line cards, fax machines, etc。
The SIDACtor is used to help equipment meet various regulatory requirements including: GR 1089, ITU K.20 & K.21,
IEC 950, UL 1459 & 1950 and FCC Part68。

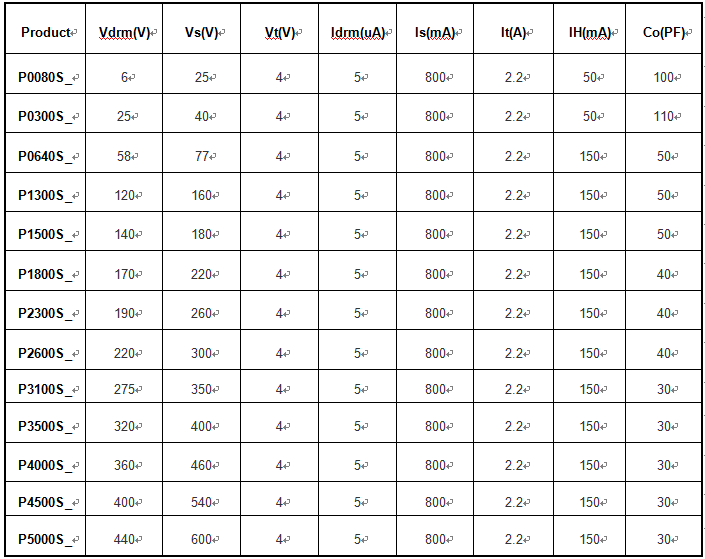

產品參數：

* For individual “SA”, “SB” and “SC” surge ratings, see table below.
Notes:
●All measurements are made at an ambient temperature of 25°C. IPP applies to -40°C through +85°C temperature range。
●IPP is a repetitive surge rating and is guaranteed for the life of the product。
●Listed SIDACtors are bi-directional. All electrical parameters & surge ratings apply to forward and reverse polarities。
●VDRM is measured at IDRM。
●VS is measured at 100V/µs.
●Special voltage (VS & VDRM) and holding current (IH) requirements are available upon request。
●Off-state capacitance is measured at 1MHz with a 2 volt bias and is a typical value for “SA” and “SB” product. “SC”
●capacitance is approximately 2x the listed value。
●The off-state capacitance of the P0080SB is equal to our “SC” device。
Surge Ratings

Series	IPP 2x10µs Amps	IPP 8x20µs Amps	IPP 10x160µs Amps	IPP 10x560µs Amps	IPP 10x1000µs Amps	ITSM60Hz Amps	dI/dt Amps/µs
A		150	100	50	50	20	500
B		250	150	100		30	500
C	500	400	200		100	60	500

.......................................................ThermalConsiderations..................................

Package	Symbol	Parameter	Value	Unit
	Tj	Junction Temperature Range	-40 to +150	°C
	Ts	Storage Temperature Range	-65 to +150	°C
DO-214	Tc	Maximum Case Temperature	+75	°C
	Rθjc	Thermal Resistance: junction to case	+28	°C/W
	Rθja	Thermal Resistance: junction to ambient	+90	°C/W

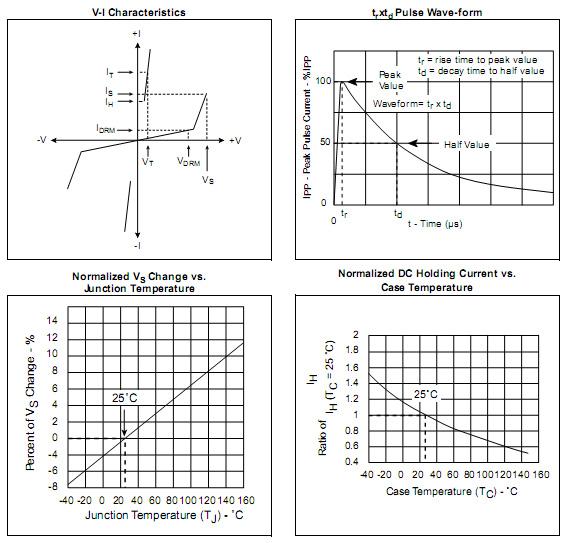

......................................................... Characteristic Curve......................................
