..........60V系列PTC.............

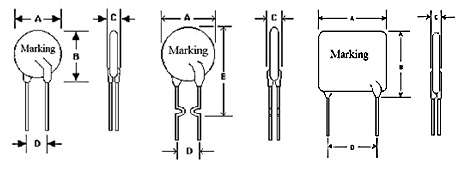

一、規(guī)格尺寸
二、規(guī)格及尺寸表
|
Model/PDF
|
Vmax
(V) |
Imax
(A) |
Ih
(A) |
Rmax
(Ω) |
Rmin
(Ω) |
Pd
(W) |
Fig.
|
Maximum Contour Size(mm)
|
|||
|
A
|
B
|
C
|
D
|
||||||||
|
60-005
|
60
|
40
|
0.05
|
20.0
|
12.0
|
0.30
|
1
|
5.0
|
8.5
|
3.1
|
5.10
|
|
60-010
|
60
|
40
|
0.10
|
7.50
|
2.50
|
0.38
|
1
|
5.50
|
9.5
|
3.1
|
5.10
|
|
60-017
|
60
|
40
|
0.17
|
5.21
|
2.84
|
0.48
|
1
|
7.40
|
12.7
|
3.1
|
5.10
|
|
60-020
|
72
|
40
|
0.20
|
2.84
|
1.83
|
0.41
|
1
|
7.40
|
12.7
|
3.1
|
5.10
|
|
60-025
|
72
|
40
|
0.25
|
1.95
|
1.25
|
0.45
|
1
|
7.40
|
12.7
|
3.1
|
5.10
|
|
60-030
|
72
|
40
|
0.30
|
1.36
|
0.88
|
0.49
|
1
|
7.40
|
13.0
|
3.1
|
5.10
|
|
60-040
|
72
|
40
|
0.40
|
0.88
|
0.55
|
0.56
|
2
|
7.40
|
13.5
|
3.1
|
5.10
|
|
60-050
|
72
|
40
|
0.50
|
0.79
|
0.50
|
0.77
|
2
|
7.60
|
13.5
|
3.1
|
5.10
|
|
60-065
|
72
|
40
|
0.65
|
0.50
|
0.31
|
0.88
|
2
|
9.40
|
14.5
|
3.1
|
5.10
|
|
60-075
|
72
|
40
|
0.75
|
0.42
|
0.25
|
0.92
|
2
|
10.2
|
15.2
|
3.1
|
5.10
|
|
60-090
|
72
|
40
|
0.90
|
0.33
|
0.20
|
0.99
|
2
|
11.2
|
15.8
|
3.1
|
5.10
|
|
60-110-y
|
72
|
40
|
1.10
|
0.27
|
0.15
|
1.50
|
1
|
12.8
|
18.0
|
3.1
|
5.10
|
|
60-110-f
|
72
|
40
|
1.10
|
0.27
|
0.15
|
1.50
|
3
|
13.0
|
18.0
|
3.1
|
5.10
|
|
60-135
|
72
|
40
|
1.35
|
0.21
|
0.12
|
1.70
|
1
|
14.5
|
19.6
|
3.1
|
5.10
|
|
60-160
|
72
|
40
|
1.60
|
0.16
|
0.09
|
1.90
|
1
|
16.3
|
21.3
|
3.1
|
5.10
|
|
60-185
|
72
|
40
|
1.85
|
0.14
|
0.08
|
2.10
|
1
|
17.5
|
22.9
|
3.1
|
5.10
|
|
60-250
|
72
|
40
|
2.50
|
0.10
|
0.05
|
2.50
|
1
|
20.8
|
26.4
|
3.1
|
10.2
|
|
60-300
|
72
|
40
|
3.00
|
0.08
|
0.04
|
2.80
|
1
|
23.9
|
30.0
|
3.1
|
10.2
|
|
60-375
|
72
|
40
|
3.75
|
0.07
|
0.03
|
3.20
|
1
|
27.2
|
31.8
|
3.1
|
10.2
|
|
60-500
|
72
|
40
|
5.00
|
0.02
|
0.03
|
4.20
|
1
|
27.2
|
31.8
|
3.1
|
10.2
|
